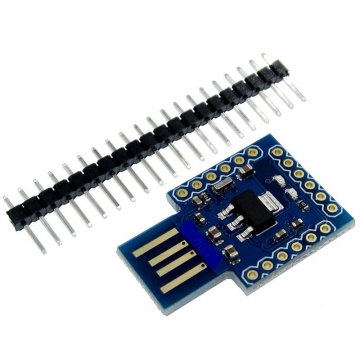

ATMega32U4 BS Micro pro Micro leonardo for Arduino compatibl

  • 价格: --
    折扣价: --
    会员价: --
  • 赠送积分
  • 库存数量
    --
  • 已售数量
    --
  • 购买数量
购买

购买结果

商品属性
  • 主控:ATmega32u4
  • 工作电压:5V
  • 数字IO个数:14
  • PWM输出个数:5
  • 模拟输入个数:6
  • 其他外设:USB, UART, I2C, SPI, 3.3V Power Supply Output
  • IO驱动力:40mA
  • Flash:32KB(ATmega32u4)其中4KB被Arduino bootloader占用
  • SRAM:2.5 KB(ATmega32u4)
  • EEPROM:1 KB(ATmega32u4)
  • 主频:16Mhz
  • 宽度:800mils(20.3mm)
  • 长度:1200mils(30.5mm)
  • 重量:2.5g(不包含包装及配件)
商品简介
购买本店元器件商品须具备一定的电子知识和操作经验,本店无技术支持哦,在使用过程中非质量问题,因个人技术操作不当产品功能无法实现效果的,我们不支持退货,介意者勿拍哦。
产品描述
BS Micro是基于ATmeag32U4的微控制器板。其拥有14个通用数字输入/输出引脚(其中5个可以作为PWM输出,6个可以作为模拟输入)。在板子上有16Mhz晶振和一个基于PCB的USB-A型接口。除此之外还有一个3.3V的独立供电输出口,它的功率输出不会影响MCU的工作,其输出功率取决于USB口的供电能力,但最大不高于1.5A。板子已烧录了Arduino的bootloader,所以它兼容Arduino的IDE。
虽然它的体积小,但它拥有丰富接口,使其不仅有传统控制器的功能,还有在电脑上实现鼠标、键盘的功能,串口功能,并且能直接实现与电脑的通信。
它与其他大多数的MCU控制板一个很大的区别是编程不需要额外使用编程器,直接用USB就可以编程。这样不仅方便、稳定、可靠,还省下了一个编程器的钱。



产品特点

主控:ATmega32u4

工作电压:5V

数字IO个数:14

PWM输出个数:5

模拟输入个数:6

其他外设:USB, UART, I2C, SPI, 3.3V Power Supply Output

IO驱动力:40mA

Flash:32KB(ATmega32u4)其中4KB被Arduino bootloader占用

SRAM:2.5 KB(ATmega32u4)

EEPROM:1 KB(ATmega32u4)

主频:16Mhz

宽度:800mils(20.3mm)

长度:1200mils(30.5mm)

重量:2.5g(不包含包装及配件)

The product description

BS Micro is based on the ATmeag32U4 Micro controller board. It owns 14 general purpose digital input/output pin (five can be used as a PWM output, 6 can be used as an analog input). On board with 16 MHZ crystals and A USB – type A interface based on PCB. In addition to A 3.3 V power supply output independently, it will not affect the work of MCU power output, the output power depends on the USB port power supply capacity, but is not higher than 1.5 A. Bat has burn Arduino bootloader, so it is compatible with the Arduino IDE.                                                                                                             Although it is small in size, but it has rich interface, make it not only has the function of the traditional controller, and realize the function of the mouse, keyboard on the computer, a serial port function, and can realize communication with computer directly.
It like most other MCU control board is a big difference between programming does not need additional use programmer, directly from the USB programming. This is not only convenient, stable and reliable, also save the expense of a programmer.

Product features

Master: ATmega32u4
Working voltage: 5 v
Digital I/o number: 14
PWM output number: 5
Analog input number: 6
Other peripherals: USB, UART, I2C, SPI, 3.3 V Power Supply Output
40 ma IO driving force:
Flash: 32 KB (ATmega32u4) including 4 KB is Arduino bootloader footprint
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
16 MHZ frequency:
Width: 800 mils (20.3 mm)
Length: 1200 mils (30.5 mm)

Weight: 2.5 g (not including packaging and accessories)
